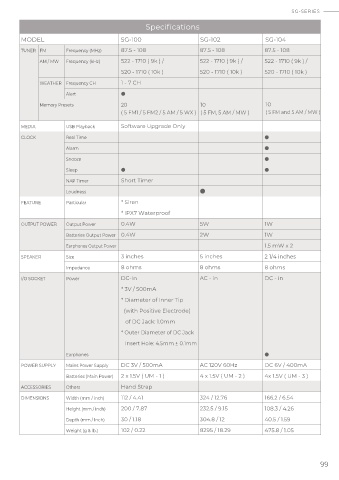

SG-SERIES

Specifications

MODEL SG-100 SG-102 SG-104
TUNER FM Frequency (MHz) 87.5 - 108 87.5 - 108 87.5 - 108

AM / MW Frequency (kHz) 522 - 1710 ( 9k ) / 522 - 1710 ( 9k ) / 522 - 1710 ( 9k ) /
520 - 1710 ( 10k ) 520 - 1710 ( 10k ) 520 - 1710 ( 10k )

WEATHER Frequency CH 1 - 7 CH
Alert ●
Memory Presets 20 10 10
( 5 FM1 / 5 FM2 / 5 AM / 5 WX ) ( 5 FM, 5 AM / MW ) ( 5 FM and 5 AM / MW )

MEDIA USB Playback Software Upgrade Only
CLOCK Real Time ●

Alarm ●
Snooze ●
Sleep ● ●

NAP Timer Short Timer
Loudness ●

FEATURE Particular * Siren
* IPX7 Waterproof
OUTPUT POWER Output Power 0.4W 5W 1W

Batteries Output Power 0.4W 2W 1W
Earphones Output Power 1.5 mW x 2

SPEAKER Size 3 inches 5 inches 2 1/4 inches
Impedance 8 ohms 8 ohms 8 ohms
I/O SOCKET Power DC-In AC - in DC - in
* 3V / 500mA

* Diameter of Inner Tip
(with Positive Electrode)

of DC Jack: 1.0mm
* Outer Diameter of DC Jack
Insert Hole: 4.5mm ± 0.1mm

Earphones ●
POWER SUPPLY Mains Power Supply DC 3V / 500mA AC 120V 60Hz DC 6V / 400mA

Batteries (Main Power) 2 x 1.5V ( UM - 1 ) 4 x 1.5V ( UM - 2 ) 4x 1.5V ( UM - 3 )
ACCESSORIES Others Hand Strap
DIMENSIONS Width (mm / inch) 112 / 4.41 324 / 12.76 166.2 / 6.54

Height (mm / inch) 200 / 7.87 232.5 / 9.15 108.3 / 4.26
Depth (mm / Inch) 30 / 1.18 304.8 / 12 40.5 / 1.59

Weight (g & lb.) 102 / 0.22 8295 / 18.29 475.8 / 1.05

99
