SG-SERIES

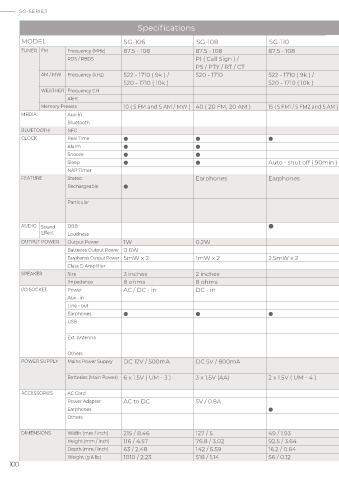

Specifications

MODEL SG-106 SG-108 SG-110 SG-112 SG-114 SG-116 SG-118
TUNER FM Frequency (MHz) 87.5 - 108 87.5 - 108 87.5 - 108 87.5 - 108 87.5 - 108 87.5 - 108 87.5 - 108
RDS / RBDS PI ( Call Sign ) / PI ( Call Sign ) /
PS / PTY / RT / CT PS / PTY / RT / CT
AM / MW Frequency (kHz) 522 - 1710 ( 9k ) / 520 - 1710 522 - 1710 ( 9k ) / 522 - 1710 ( 9k ) / 520 - 1710 520 - 1710 520 - 1710
520 - 1710 ( 10k ) 520 - 1710 ( 10k ) 520 - 1710 ( 10k )
WEATHER Frequency CH 1 - 7 CH
Alert ●
Memory Presets 10 ( 5 FM and 5 AM / MW ) 40 ( 20 FM, 20 AM ) 15 ( 5 FM1 / 5 FM2 and 5 AM ) 19 ( AM / FM MIXED ) 40 ( 20 FM, 20 AM )
MEDIA Aux-in ● ● ●
Bluetooth ●
BLUETOOTH NFC ●
CLOCK Real Time ● ● ● ● ●
Alarm ● ● ●
Snooze ● ● ●
Sleep ● ● Auto - shut off ( 90min ) Auto-shut off ( 90min ) ●
NAP Timer ●
FEATURE Stereo Earphones Earphones Earphones Earphones
Rechargeable ● Hand Crank,Dynamo
/ USB Charging
Particular * Solar Power Dynamic Bass
* Hand cranker Compensation
power generator
AUDIO Sound DBB ●
Effect Loudness
OUTPUT POWER Output Power 1W 0.2W 1.4W 6.5W 6.5W
Batteries Output Power 0.6W 0.4W
Earphones Output Power 5mW x 2 1mW x 2 2.5mW x 2 1mW x 2 1mW x 2 5mW x 2 3mW x 2
Class D Amplifier
SPEAKER Size 3 inches 2 inches 1 1/2 inches 3 inches 3 inches 3 inches
Impedance 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms
I/O SOCKET Power AC / DC - in DC - in DC - in ( Micro USB ) DC - in AC - in AC / DC - in
Aux - in ● ● ●
Line - out REC OUT REC OUT
Earphones ● ● ● ● ● ● ●
USB USB - A for Charge DC Out 5V / 1A & USB-A DC-OUT
( DC Out 5V / 0.3A ) Update Software (5V / 1A)(Charge Only)
Ext. Antenna FM F Type Antenna AM EXT ANT / FM
Terminal + AM ANT-IN
Others REC. OUT
POWER SUPPLY Mains Power Supply DC 12V / 500mA DC 5V / 800mA DC 6V / 2A DC 12V / 1A DC 12V / 1A
AC 120V 60Hz AC 120V 60Hz
Batteries (Main Power) 6 x 1.5V ( UM - 3 ) 3 x 1.5V (AA) 2 x 1.5V ( UM - 4 ) 18350 Lithium battery
3.7V / 850mAh
ACCESSORIES AC Cord ● ●
Power Adapter AC to DC 5V / 0.8A 6V / 2A
Earphones ●
Others USB A to Micro USB B FM Wiring Antenna FM Wiring Antenna
Cable and Hand Strap
DIMENSIONS Width (mm / inch) 215 / 8.46 127 / 5 49 / 1.93 152 / 5.98 172 / 6.77 240 / 9.45 240 / 9.45
Height (mm / inch) 116 / 4.57 76.8 / 3.02 92.5 / 3.64 83.6 / 3.29 56.5 / 2.22 119 / 4.69 119 / 4.69
Depth (mm / Inch) 63 / 2.48 142 / 5.59 16.2 / 0.64 17.5 / 0.69 63 / 2.48 193.4 / 7.61 168 / 6.61
Weight (g & lb.) 1010 / 2.23 518 / 1.14 56 / 0.12 56.7 / 0.13 844 / 1.95 2568 / 5.66 2375 / 5.24
