UTILITY/WORKSITE RADIOS

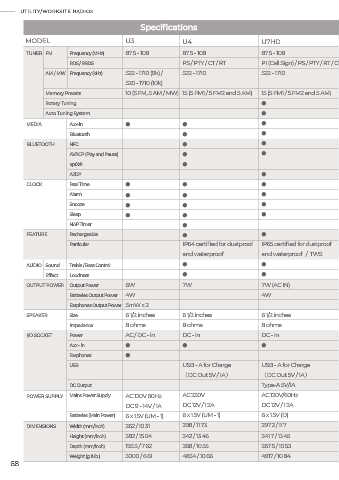

Specifications

MODEL U3 U4 U7HD BB-100 TB-100 LB-100

TUNER FM Frequency (MHz) 87.5 - 108 87.5 - 108 87.5 - 108 87.5 - 108 87.5 - 108 87.5 - 108
RDS / RBDS PS / PTY / CT / RT PI (Call Sign) / PS / PTY / RT / CT
AM / MW Frequency (kHz) 522 - 1710 (9k) / 522 - 1710 522 - 1710 522 - 1710 (9k) / 522 - 1710 (9k) / 522 - 1710 (9k) /
520 - 1710 (10k) 520 - 1710 (10k) 520 - 1710 (10k) 520 - 1710 (10k)

Memory Presets 10 (5 FM, 5 AM / MW) 15 (5 FM1 / 5 FM2 and 5 AM) 15 (5 FM1 / 5 FM2 and 5 AM) 10 (5 FM and 5 AM ) 10 (5 FM, 5 AM / MW) 10 (5 FM, 5 AM / MW)
Rotary Tuning ●
Auto Tuning System ●
MEDIA Aux-in ● ● ● ● ●

Bluetooth ● ● ●
BLUETOOTH NFC ● ●
AVRCP (Play and Pause) ● ● ●
aptX® ●

A2DP ●
CLOCK Real Time ● ● ●
Alarm ● ● ●
Snooze ● ● ●
Sleep ● ● ●
NAP Timer ●

FEATURE Rechargeable ● ● ●
Particular IP64 certified for dustproof IP65 certified for dustproof IP64 certified for dustproof
and waterproof and waterproof / TWS and waterproof
AUDIO Sound Treble / Bass Control ● ● ●

Effect Loudness ● ● ●
OUTPUT POWER Output Power 6W 7W 7W (AC IN) 5W 5W 5W
Batteries Output Power 4W 4W 2W 2W 2W
Earphones Output Power 5mW x 2
SPEAKER Size 6 1/2 inches 6 1/2 inches 6 1/2 inches 5 inches 5 inches 5 inches
Impedance 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms

I/O SOCKET Power AC / DC - in DC - in DC - in AC - in AC - in AC - in
Aux - in ● ● ● ● ●
Earphones ●
USB USB - A for Charge USB - A for Charge

（DC Out 5V / 1A） （DC Out 5V / 1A）
DC Output Type-A 5V/1A
POWER SUPPLY Mains Power Supply AC 120V 60Hz AC 230V AC 120V/60Hz AC 120V 60Hz AC 120V 60Hz AC 120V 60Hz (USA)
DC 9 - 14V / 1A DC 12V / 1.2A DC 12V / 1.2A
Batteries (Main Power) 6 x 1.5V (UM - 1) 6 x 1.5V (UM - 1) 6 x 1.5V (D) 4 x 1.5V (UM -2) 4 x 1.5V (UM - 2) 4 x 1.5V (UM - 2)

DIMENSIONS Width (mm/inch) 262 / 10.31 298 / 11.73 297.2 / 11.7 310.2 / 12.21 324 / 12.76 324 / 12.76
Height (mm/inch) 382 / 15.04 342 / 13.46 341.7 / 13.45 314 / 12.36 232.5 / 9.15 232.5 / 9.15
Depth (mm/inch) 193.5 / 7.62 268 / 10.55 267.5 / 10.53 265.5 / 10.45 268 / 10.5 304.8 / 12
Weight (g & lb.) 3000 / 6.61 4834 / 10.66 4917 / 10.84 2976 / 6.56 4565 / 10.06 8295 / 18.29
