Page 51 - 2025_Brochure_EU
P. 51

HANDHELD RADIOS

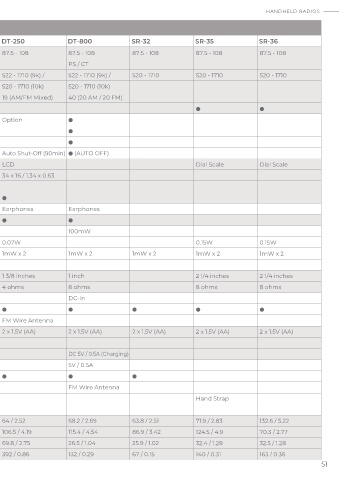

 Specifications

 MODEL  DT-120  DT-140  DT-160  DT-250  DT-800  SR-32                 SR-35                 SR-36

 TUNER  FM  Frequency (MHz)  87.5 - 108  87.5 - 108  87.5-108  87.5 - 108  87.5 - 108  87.5 - 108  87.5 - 108  87.5 - 108
 RDS / RBDS              PS / CT

 AM/MW  Frequency (kHz)  522 - 1710 (9k) /  522 - 1710 (9k) /  522 - 1710 (9k) /  522 - 1710 (9k) /  522 - 1710 (9k) /  520 - 1710  520 - 1710  520 - 1710
 520 - 1710 (10k)  520 - 1710 (10k)  520 - 1710 (10k)  520 - 1710 (10k)  520 - 1710 (10k)

 Memory Presets  15 (5 AM / 5 FM1 / 5 FM2) 40 (20AM / 20FM)  15 (5 AM / 10 FM)  19 (AM/FM Mixed)  40 (20 AM / 20 FM)
 Rotary Tuning                                                        ●                     ●

 CLOCK  Real Time   ●  ●  ●  Option  ●
 Alarm                   ●
 Snooze                  ●

 Sleep  Auto Shut-Off (90min) Auto Shut-Off (90min) Auto Shut-Off (90min) Auto Shut-Off (90min) ● (AUTO OFF)
 DISPLAY  LCD / VFD / Dial Scale  LCD  LCD  LCD                       Dial Scale            Dial Scale

 View Area (mm / inch)  29.6 x 15 / 1.17 x 0.59  42.2 x 23.2 / 1.66 x 0.91 34 x 16 / 1.34 x 0.63
 Graphic / Character Type  Segment  Segment

 Back Light  ●
 FEATURE  Stereo  Earphones  Earphones  Earphones  Earphones  Earphones

 AUDIO  Sound Effect DBB  ●  ●  ●  ●  ●
 OUTPUT POWER  Output Power  100mW
 Battery Output Power  0.07W                                          0.15W                 0.15W

 Earphones Output Power 2.5mW x 2  1mW x 2  1mW x 2  1mW x 2  1mW x 2  1mW x 2  1mW x 2     1mW x 2
 Class D Amplifier

 SPEAKER  Size  1 3/8 inches  1 inch                                  2 1/4 inches          2 1/4 inches
 Impedance  4 ohms       8 ohms                                       8 ohms                8 ohms

 I/O SOCKET  Power  DC-In (Micro USB)  DC-In
 Earphones  ●  ●  ●  ●   ●                     ●                      ●                     ●

 Ext. Antenna  FM Wire Antenna
 POWER SUPPLY  Batteries (Main Power)  2 x 1.5V (AAA)  Lithium Battery 3.7V / 900mAh 2 x 1.5V (AA)  2 x 1.5V (AA)  2 x 1.5V (AA)  2 x 1.5V (AA)  2 x 1.5V (AA)  2 x 1.5V (AA)
 Batteries (Back up)

 Micro USB DC IN  DC 5V / 0.5A (for Charge)  DC 5V / 0.5A (Charging)
 ACCESSORIES  Power Adapter  5V / 0.5A

 Earphones  ●  ●  ●      ●                     ●
 Ext. Antenna            FM Wire Antenna

 Others  USB A to Micro USB B                                         Hand Strap
 Cable & Belt Clip

 DIMENSIONS  Width (mm/inch)  49 / 1.93  49.7 / 1.96  63 / 2.48  64 / 2.52  68.2 / 2.69  63.8 / 2.51  71.9 / 2.83  132.6 / 5.22
 Height (mm/inch)  92.5 / 3.64  91.9 / 3.62  101.2 / 3.98  106.5 / 4.19  115.4 / 4.54  86.9 / 3.42  124.5 / 4.9  70.3 / 2.77
 Depth (mm/inch)  16.2 / 0.64  17.5 / 0.69  30.5 / 1.2  69.8 / 2.75  26.5 / 1.04  25.9 / 1.02  32.4 / 1.28  32.5 / 1.28

 Weight (g & lb.)  56 / 0.12  56 / 0.12  107.7 / 0.24  392 / 0.86  132 / 0.29  67 / 0.15  140 / 0.31  163 / 0.36
                                                                                                                  51
