Page 85 - 2022_Brochure_US

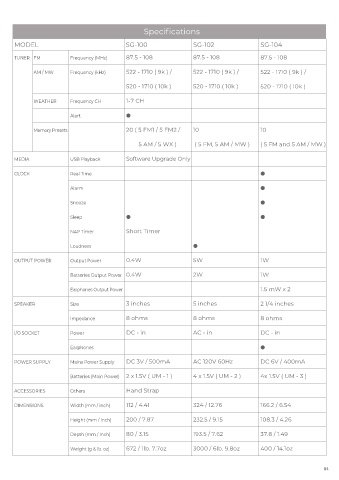

Specifications

MODEL SG-100 SG-102 SG-104

TUNER FM Frequency (MHz) 87.5 - 108 87.5 - 108 87.5 - 108

AM / MW Frequency (kHz) 522 - 1710 ( 9k ) / 522 - 1710 ( 9k ) / 522 - 1710 ( 9k ) /

520 - 1710 ( 10k ) 520 - 1710 ( 10k ) 520 - 1710 ( 10k )

WEATHER Frequency CH 1-7 CH

Alert µ

Memory Presets 20 ( 5 FM1 / 5 FM2 / 10 10

5 AM / 5 WX ) ( 5 FM, 5 AM / MW ) ( 5 FM and 5 AM / MW )

MEDIA USB Playback Software Upgrade Only

CLOCK Real Time µ

Alarm µ

Snooze µ

Sleep µ µ

NAP Timer Short Timer

Loudness µ

OUTPUT POWER Output Power 0.4W 5W 1W

Batteries Output Power 0.4W 2W 1W

Earphones Output Power 1.5 mW x 2

SPEAKER Size 3 inches 5 inches 2 1/4 inches

Impedance 8 ohms 8 ohms 8 ohms

I/O SOCKET Power DC - in AC - in DC - in

Earphones µ

POWER SUPPLY Mains Power Supply DC 3V / 500mA AC 120V 60Hz DC 6V / 400mA

Batteries (Main Power) 2 x 1.5V ( UM - 1 ) 4 x 1.5V ( UM - 2 ) 4x 1.5V ( UM - 3 )

ACCESSORIES Others Hand Strap

DIMENSIONS Width (mm / inch) 112 / 4.41 324 / 12.76 166.2 / 6.54

Height (mm / inch) 200 / 7.87 232.5 / 9.15 108.3 / 4.26

Depth (mm / Inch) 80 / 3.15 193.5 / 7.62 37.8 / 1.49

Weight (g & lb. oz) 672 / 1lb. 7.7oz 3000 / 6lb. 9.8oz 400 / 14.1oz

84
