Page 65 - 2022_Brochure_US

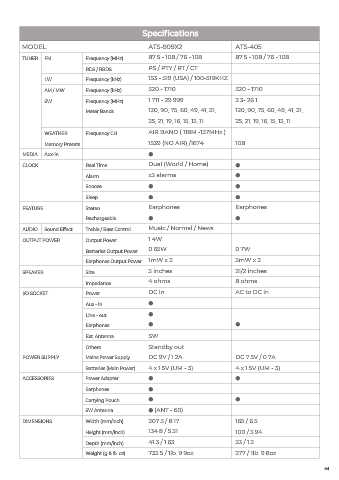

Specifications

MODEL ATS-909X2 ATS-405

TUNER FM Frequency (MHz) 87.5 - 108 / 76 - 108 87.5 - 108 / 76 - 108
RDS / RBDS PS / PTY / RT / CT

LW Frequency (kHz) 153 - 519 (USA) / 100-519KHZ
AM / MW Frequency (kHz) 520 - 1710 520 - 1710
SW Frequency (MHz) 1.711 - 29.999 2.3- 26.1

Meter Bands 120, 90, 75, 60, 49, 41, 31, 120, 90, 75, 60, 49, 41, 31,
25, 21, 19, 16, 15, 13, 11 25, 21, 19, 16, 15, 13, 11
WEATHER Frequency CH AIR BAND ( 118M -137MHz )

Memory Presets 1539 (NO AIR) /1674 108
MEDIA Aux-in ˔
CLOCK Real Time Dual (World / Home) ˔

Alarm x3 alarms ˔
Snooze ˔ ˔
Sleep ˔ ˔

FEATURE Stereo Earphones Earphones
Rechargeable ˔ ˔
AUDIO Sound Effect Treble / Bass Control Music / Normal / News

OUTPUT POWER Output Power 1.4W
Batteries Output Power 0.65W 0.7W
Earphones Output Power 1mW x 2 3mW x 2

SPEAKER Size 3 inches 21/2 inches
Impedance 4 ohms 8 ohms

I/O SOCKET Power DC in AC to DC in
Aux - in ˔
Line - out ˔
Earphones ˔ ˔

Ext. Antenna SW
Others Standby out

POWER SUPPLY Mains Power Supply DC 9V / 1.2A DC 7.5V / 0.7A
Batteries (Main Power) 4 x 1.5V (UM - 3) 4 x 1.5V (UM - 3)
ACCESSORIES Power Adapter ˔ ˔

Earphones ˔
Carrying Pouch ˔ ˔
SW Antenna ˔ (ANT - 60)

DIMENSIONS Width (mm/inch) 207.5 / 8.17 165 / 6.5
Height (mm/inch) 134.8 / 5.31 100 / 3.94
Depth (mm/inch) 41.3 / 1.63 33 / 1.3

Weight (g & lb. oz) 733.5 / 1lb. 9.9oz 277 / 1lb. 9.8oz

64
